Product Characteristics

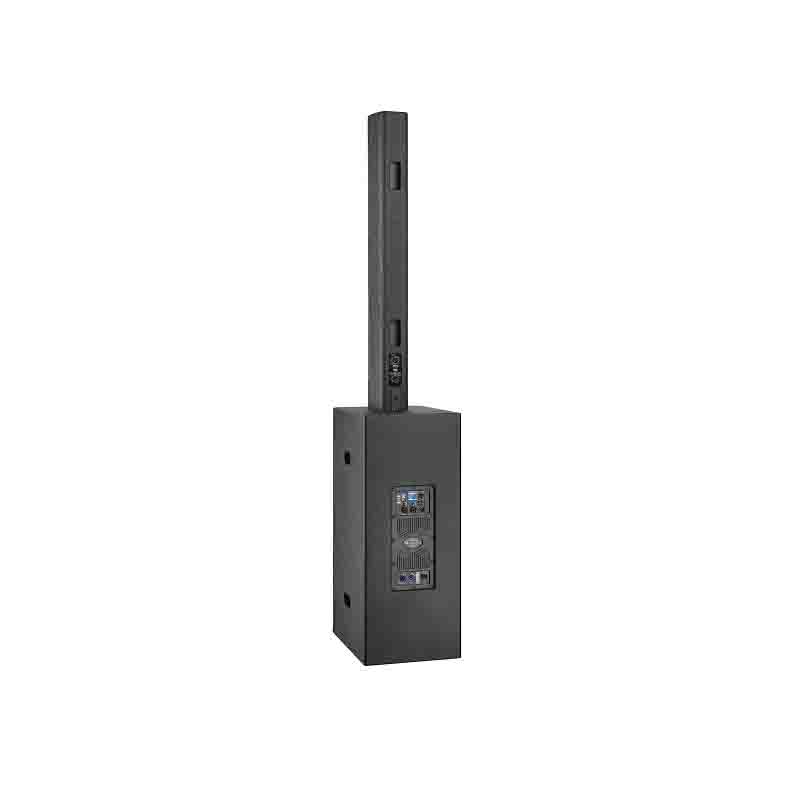

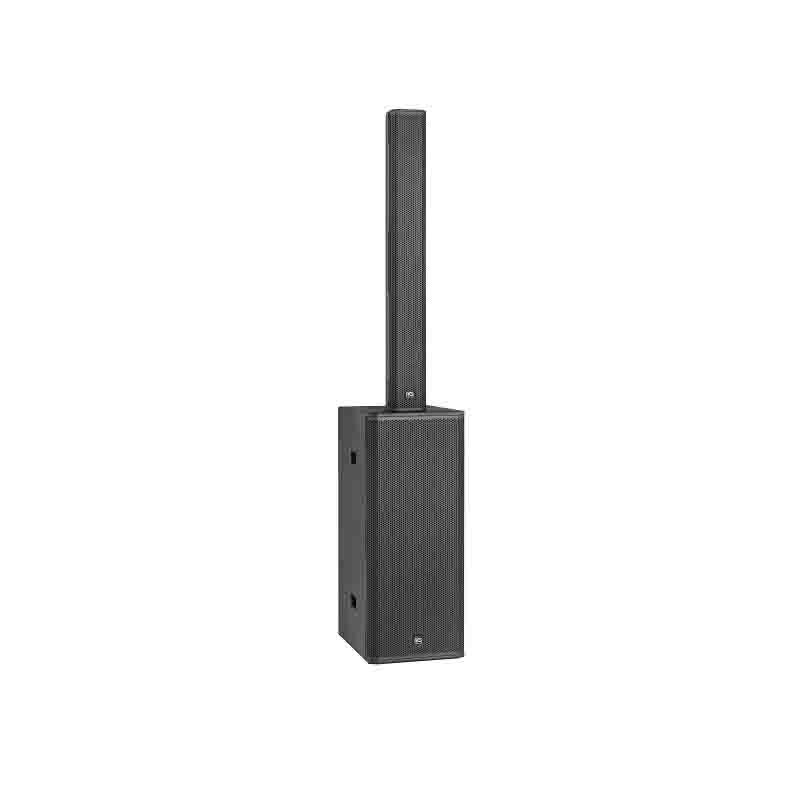

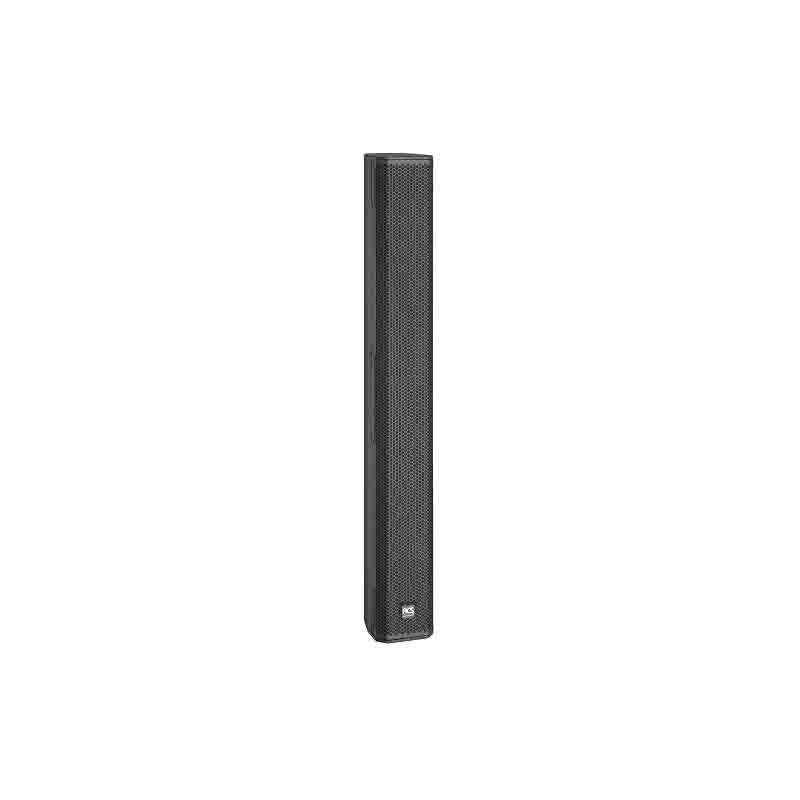

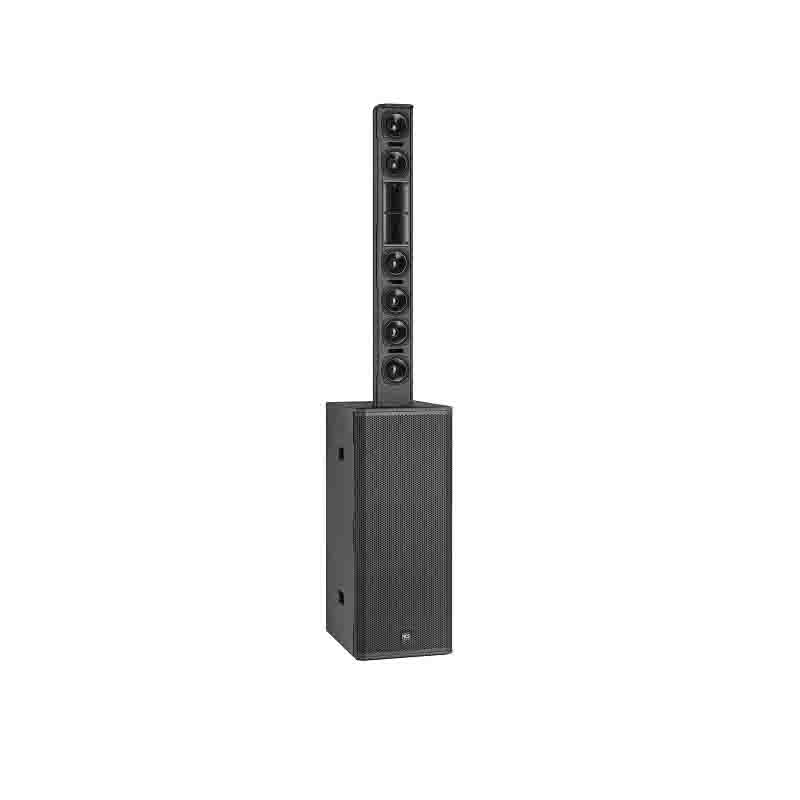

The PV-4 adopts a multi-layer high-density plywood riveting box, which is sturdy and firm. The surface adopts high-end sandblasting technology, and the appearance is delicate and exquisite. It is equipped with 6 25.5mm voice coil 4.5-inch basin units, 2 44 core 1.75 "high pitched, strong magnetic treatment, high sound pressure, fidelity, and durability.

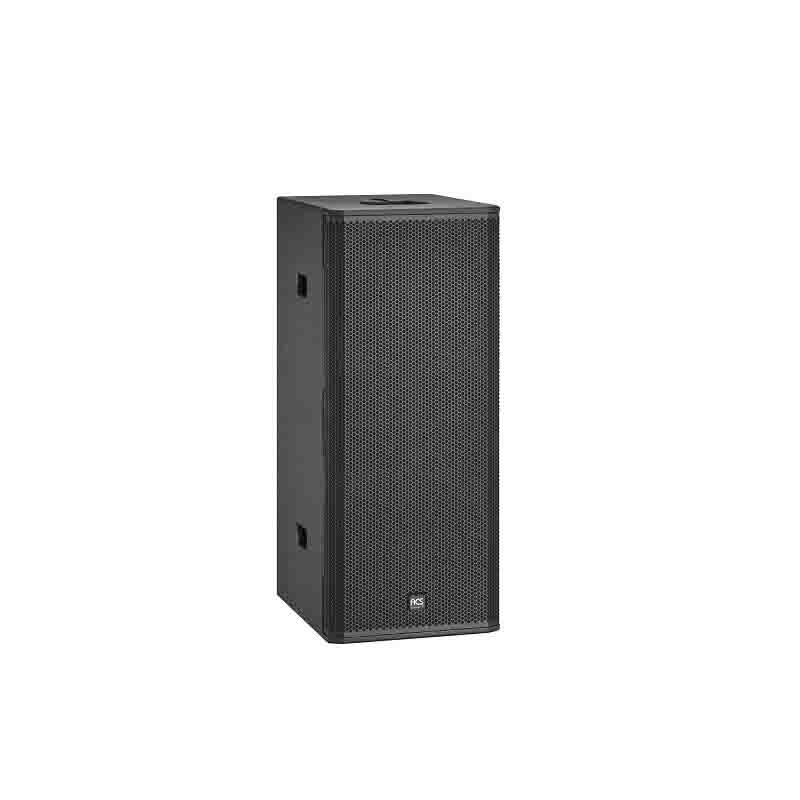

PV22 is equipped with two 12 inch subwoofers, paired with a compact ultra-low frequency system with a built-in amplifier module, and uses a long stroke rubber edge subwoofer. Built in DSP processing chip, with the advantage of thick and outstanding intermediate frequency performance, using high hardness wooden box material. Suitable for large-scale language amplification, music applications, and small to medium-sized performances.
Parameter
System type:Six 4.5′Column Speaker；
Drivers: HF:2×1.75′(44mm voice coil)、LF: 6×4.5′(25mm voice coil)；
Frequency Response: 130Hz～120KHz；
Power(Rms/Program/Peak): 200W/400W/800W；
Sensitivity: 101dB；
Impedance: 8Ω；
Maximum SPL: 124dB；
Directivity Angle: 110ºH×40ºV；
Speaker Input:NL4MP×2；
Size（H×W×D）：1130×140×165（mm）；
Size（H×W×D）：1180*190*215（mm）；
Net Weight:14.1kg
gross weight：16kg
System type:Double 12′ Subwoofer；
rivers: LF: 2×12′(75mm voice coil)；
Frequency Response: 48Hz～250Hz；
Power(Rms/Program/Peak): 600W/1200W/2400W；
Sensitivity: 98dB；
Impedance: 4Ω；
Maximum SPL: 123dB；
Speaker Input:NL4MP×2；
Size（H×W×D）：915*370*515（mm）；
Size（H×W×D）：965*420*565（mm）；
Net Weight:43kg
gross weight：46kg
