Product Characteristics

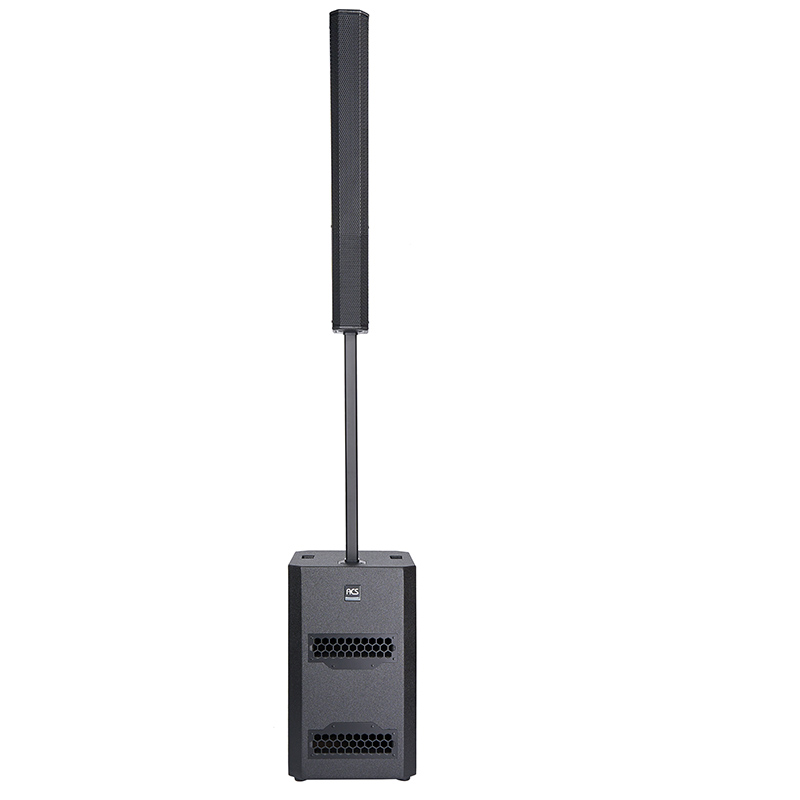

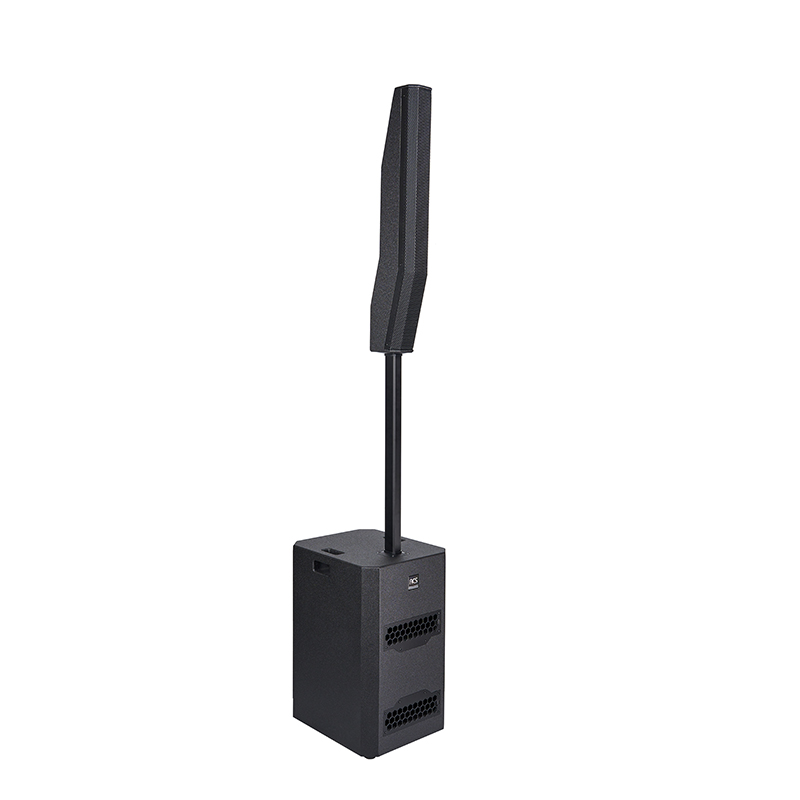

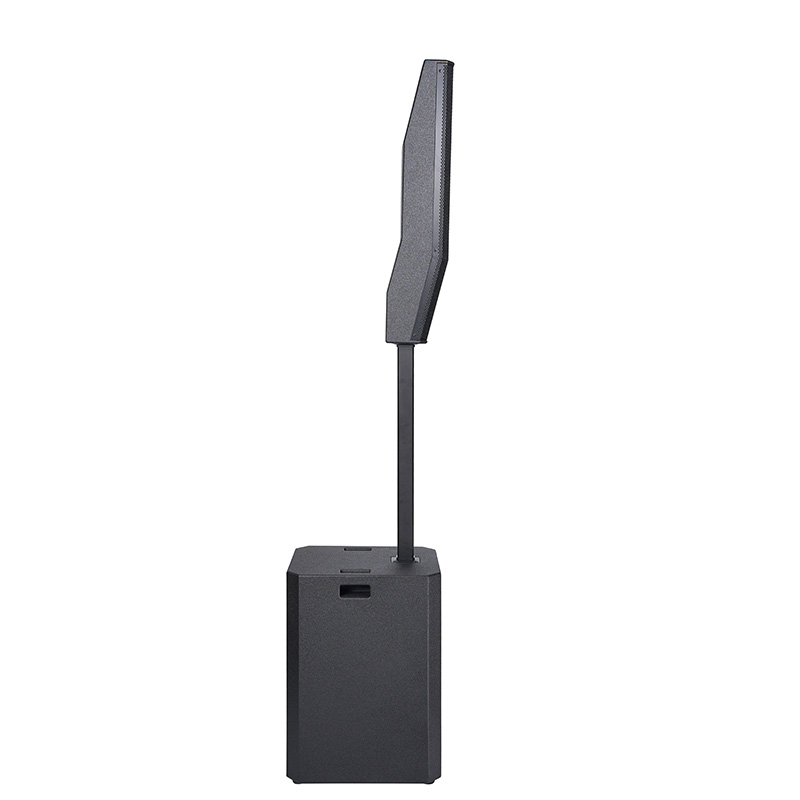

PV8 uses a combination of eight 3-inch full-band speaker unit speakers and a 12-inch subwoofer, a compact ultra-low frequency system with a built-in power amplifier module, and a long-stroke rubber-sided bass unit. Built-in DSP processing chip, Bluetooth, a variety of input interfaces; The advantage is that the medium frequency performance is thick and prominent, and the high hardness wooden box material is used. Suitable for large language reinforcement, music applications, small and medium performances. Application: Banquet hall, multi-function hall, auditorium, gymnasium, bar, shopping mall, mobile performance, public place
Parameter

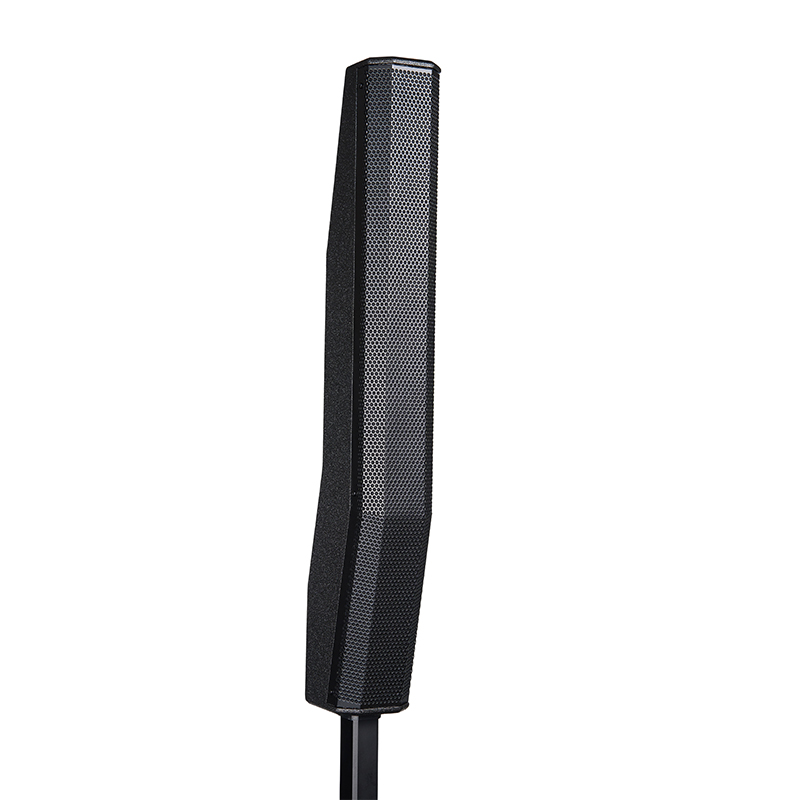

System type:Eight 3′Column Speaker；
Drivers: LF: 8×3′(25mm voice coil)；
Frequency Response: 98Hz～16KHz；
Power(Rms/Program/Peak): 160W/320W/640W；
Sensitivity: 96dB；
Impedance: 4Ω；
Maximum SPL: 118dB；
Directivity Angle: 100ºH×20ºV；

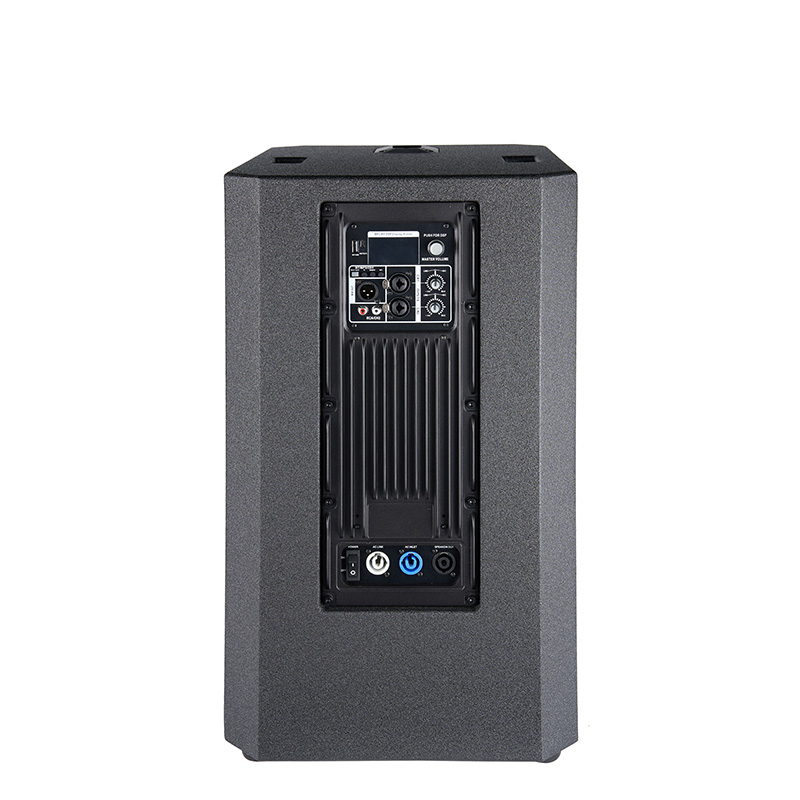

Signal Input:2×XLR/TRS "combo jack" mic/line/Hi-Z guitar
Function：Bluetooth/USB/MP3
Size（H×W×D）：810*105*140（mm）；
N.W:6.5kg
G.W：？kg

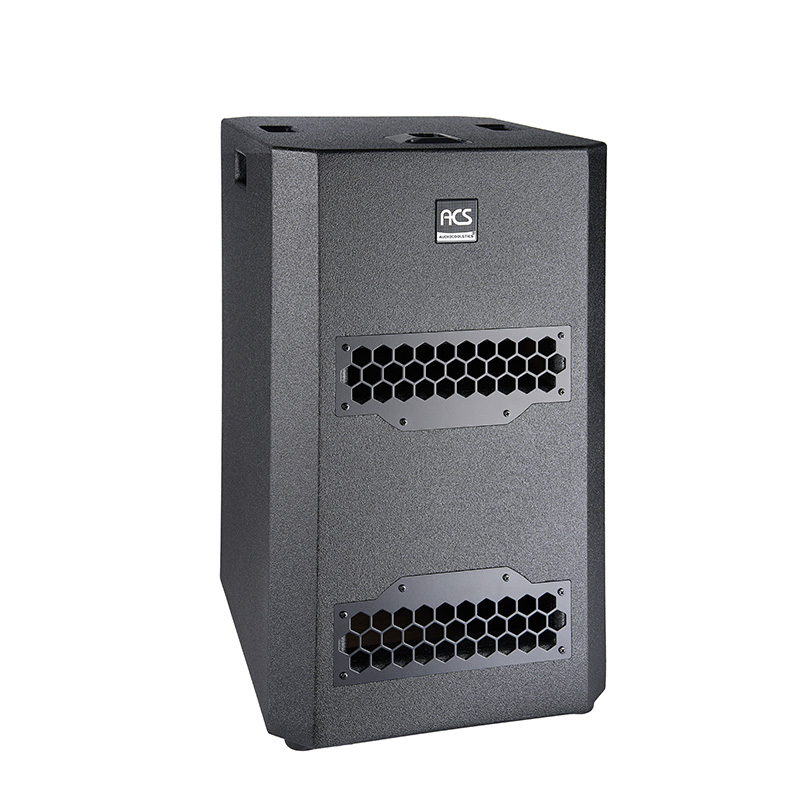

System type: Single 12′ Subwoofer；
Drivers: LF: 1×12′(65mm voice coil)；
Frequency Response: 38Hz～200Hz；
Power(Rms/Program/Peak): 300W/600W/1200W；
Sensitivity: 96dB；
Impedance: 4Ω；
Maximum SPL:121dB；
Signal Input:2×XLR/TRS "combo jack" mic/line/Hi-Z guitar
Function：Bluetooth/USB/MP3
Size（H×W×D）：600*365*450（mm）；
N.W:21kg
G.W：？kg
