Product Characteristics

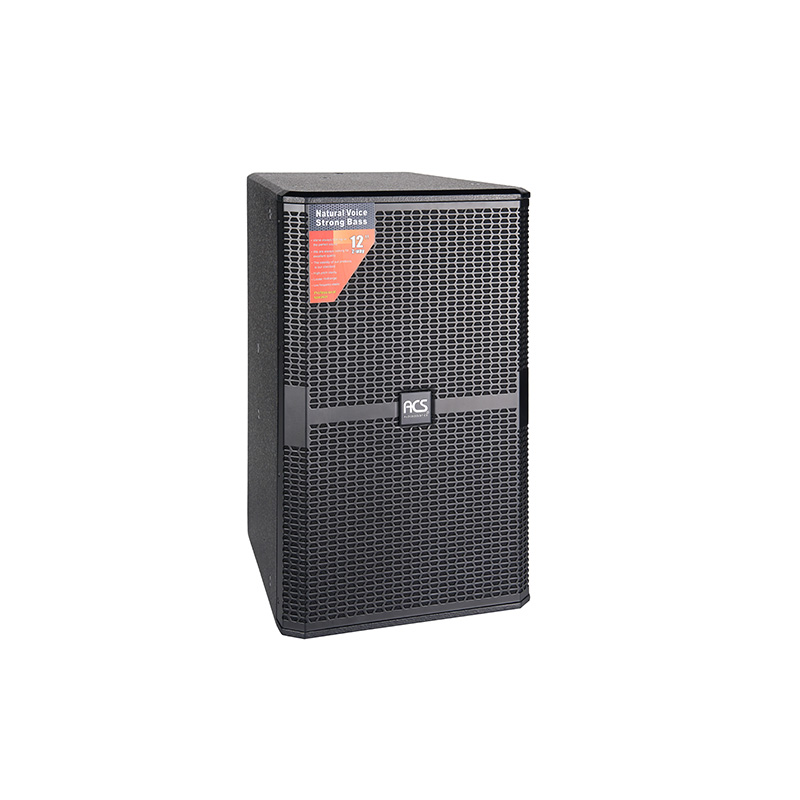

The AD-12 is a high output and superior performance full frequency speaker for room applications. It is equipped with a high-power aluminum tray, magnetic steel diameter 190mm, voice coil 75 mm bass unit; It is also equipped with an imported tweeter unit with a density of high precision and fine, with a magnetic steel diameter of 100mm and a voice coil diameter of 44mm. The whole speaker system is made of high-hardness laminated panels that can withstand 1200W of input power. Whether placed horizontally or vertically, the 60°V x40H° coverage Angle provides uniform and flat coverage. A passive divider with high slope attenuation minimizes band overlap.
Parameter
System type:Single 12′ Full Range Speaker；
Drivers: HF:1×1.75′(44mm voice coil),LF: 1×12′(75mm voice coil)；
Frequency Response: 60Hz～20KHz；
Power(Rms/Program/Peak): 350W/700W/1400W；
Sensitivity: 96dB；
Impedance: 8Ω；
Maximum SPL: 121dB；
Directivity Angle: 40ºH×60ºV；
Speaker Input:NL4MP×2；
Product size（H×W×D）：570*345*380（mm）；
Package size（H×W×D）：670*430*450（mm）；
N.W:23.5kg
G.W:26kg
