Product Characteristics

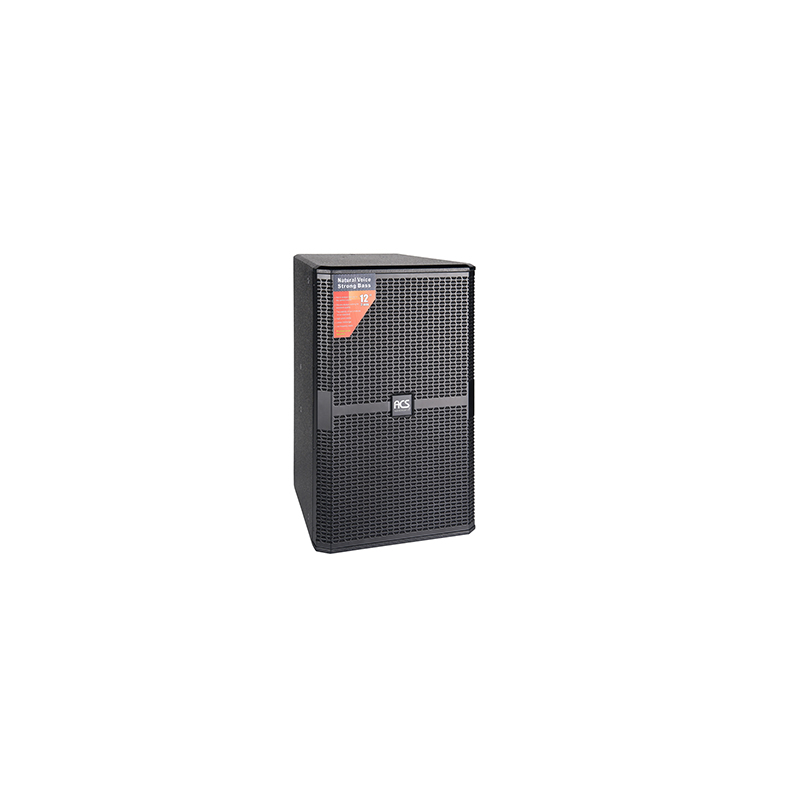

The AD-10 is a high output and superior performance full frequency speaker for room applications. It is equipped with a high-power aluminum tray, magnetic steel diameter 156mm, voice coil 65 mm bass unit; It is also equipped with a high density, clear and delicate, magnetic steel diameter of 120mm, voice coil diameter of 44mm titanium composite diaphragm treble unit. The whole speaker system is made of high hardness sandwich plate, which can withstand 1000W input power. Whether placed horizontally or vertically, the 60°V x40H° coverage Angle provides uniform and flat coverage. A passive divider with high slope attenuation minimizes band overlap.
Parameter
System type:Single 10′ Full Range Speaker；
Drivers: HF:1×1.75′(44mm voice coil),LF: 1×10′(65mm voice coil)；
Frequency Response: 70Hz～20KHz；
Power(Rms/Program/Peak): 300W/600W/1200W；
Sensitivity: 95dB；
Impedance: 8Ω；
Maximum SPL: 120dB；
Directivity Angle: 40ºH×60ºV；
Speaker Input:NL4MP×2；
Size（H×W×D）：526*295*340（mm）；
Size（H×W×D）：605*395*410（mm）；
N.W:16kg
G.W：18kg
