Product Characteristics
■ Low distortion, high definition, and high sound pressure level. To achieve low distortion and high sound pressure level, two 5" woofer units are used, equipped with a φ100 magnetic steel 35-core voice coil and a 1-inch horn tweeter unit.
■ The sound is clearer and softer. The high Q-value cabinet design enables the 5" low-frequency unit to achieve a low-frequency diving ability of 95Hz.

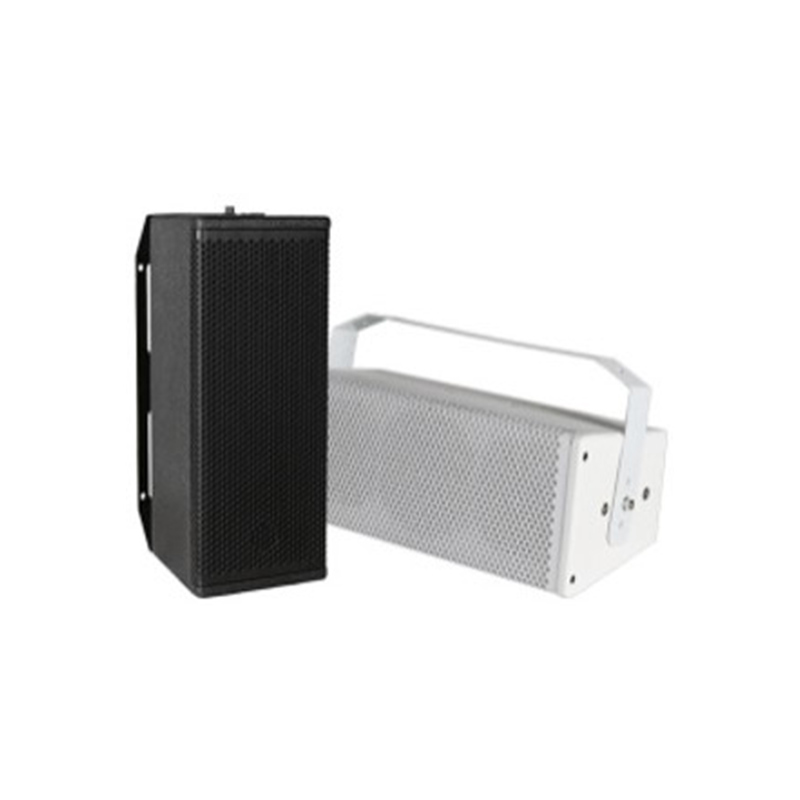

■ The appearance of HY-205 is more modern, and the concave curved surface grille shows more class. The overall effect is beautiful, generous, and delicate. The wear-resistant and elegant appearance, and the cabinet is made of high-hardness PU paint.
Parameter
系System type: Double 5′ Conference Speaker；
Drivers: HF:1×1.35′(34mm voice coil),LF: 2×5′(35.5mm voice coil)；
Frequency Response: 95Hz～16KHz；
Power(Rms/Program/Peak): 150W/300W/600W；
Sensitivity: 93dB；
Impedance: 8Ω；
Maximum SPL: 115dB；
Directivity Angle: 60ºH×30ºV；
Speaker Input:Terminal Block×1；
Size（H×W×D）：438×178×208 （mm）；
Size（H×W×D）：pretend to be ignorant580×260×530（mm）；
Net Weight:8.6kg
gross weight：19kg
