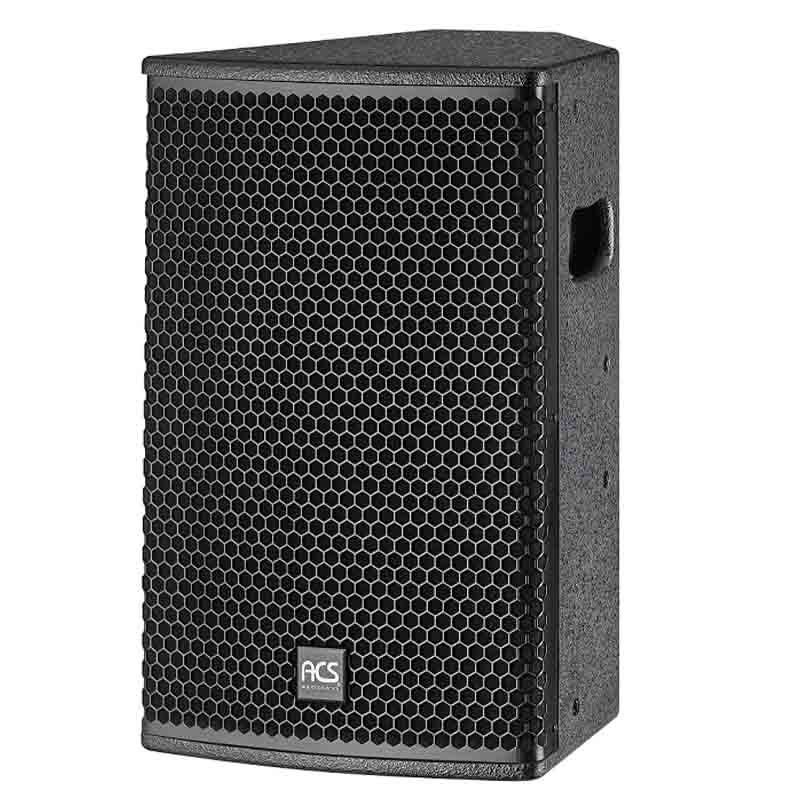

MX-15

Single 15 inch multifunctional box

The MX-15 is a high-power and robust binary frequency division system, There is a strong 15 The low-frequency driver and a 1-inch high-frequency make the system more concise, making it an ideal choice for occasions that require efficient and reliable full frequency speakers. It is also suitable for fixed installation and fast mobile installation. The MX series speakers have a true and natural performance, and their biggest feature is their lightweight and high sound pressure level, which precisely meets many occasions that require small speakers to meet the needs of large spaces. The durable appearance uses high Density board is used as the structural material of the box, and the surface of the box is coated with durable black water-based paint. The sound box has very strong anti-aging strength

Product Characteristics

■The MX-15 is a high-power and sturdy binary frequency system with a powerful 15 "low-frequency driver and a 1-inch high-frequency. This makes the system more concise and is the ideal choice for occasions that require efficient and reliable full frequency speakers. It is also suitable for fixed installation and fast mobile installation. ■The MX series speakers have a realistic and natural performance, and their biggest feature is their lightweight and high sound pressure level, which precisely meets the needs of many small speakers to meet the needs of large spaces. The durable appearance uses high-density board as the structural material of the box, and the surface of the box is coated with durable black water-based paint. The sound box has very strong anti-aging strength ■Provide M8 hanging points for fixing installation and adjusting angles in flow applications. And there is a 35mm bracket base at the bottom of the speaker, which is convenient for matching with the low-frequency use of this series. The perforated iron mesh with a black inner layer of sound permeable sponge protects the speaker unit.

Parameter

System type: Single 15′ Full Range Speaker;

Drivers: HF:1×1.75′(44mm voice coil),LF: 1×15′(75mm voice coil);
Frequency Response: 75Hz~20KHz;
Power(Rms/Program/Peak): 350W/600W/1200W;
Sensitivity: 95dB;
Impedance: 8Ω;
Maximum SPL: 120dB;
Directivity Angle: 90ºH×55ºV;;
Speaker Input:NL4MP×2;
Product size(H×W×D):420*375*675 (mm);
Package size(H×W×D):490*450*750(mm);
N.W: 25kg
G.W:27.5kg
