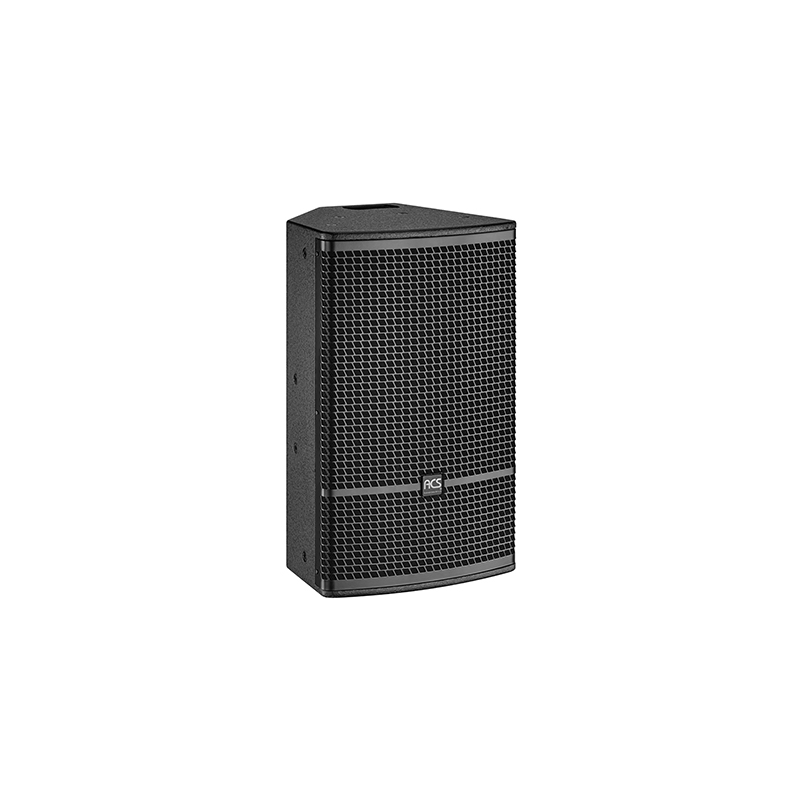

MU10

Single 10 inch speaker

The compact multi-purpose full frequency System integration the best driver unit and point source array waveguide technology Extremely compact multi-purpose box design, rectangular planar waveguide radiation sound field, patented point source array waveguide horn (PSAM) * design, multiple hanging points MU series superior sound quality performance, designed for near field applications, excellent driver unit and rectangular plane coverage angle symmetrical waveguide horn, Ensuring the demand for pure high fidelity sound. Features: fever grade Neodymium magnet tweeter driver unit and rectangular radiation field waveguide horn system The jade shrink driver unit uses patented horn, including planar waveguide radiation field technology to reduce sound interference.

Product Characteristics

The compact multi-purpose full frequency System integration the best driver unit and point source array waveguide technology Extremely compact multi-purpose box design, rectangular planar waveguide radiation sound field, patented point source array waveguide horn (PSAM) * design, multiple hanging points MU series superior sound quality performance, designed for near field applications, excellent driver unit and rectangular plane coverage angle symmetrical waveguide horn, Ensuring the demand for pure high fidelity sound
Features: fever level Neodymium magnet tweeter driver and rectangular radiation field waveguide horn system The jade shrink drive unit uses a patented horn, which includes planar waveguide radiation field technology to reduce sound interference.

Parameter

System type: Single 10′ Full Range Speaker;

Drivers: HF:1×1.75′(44mm voice coil),LF: 1×10′(65mm voice coil);
Frequency Response: 68Hz~20KHz;
Power(Rms/Program/Peak): 350W/700W/1400W;
Sensitivity: 96dB;
Impedance: 8Ω;
Maximum SPL: 121dB;
Directivity Angle: 90ºH×30ºV;
Speaker Input:NL4MP×2;
Product size(H×W×D):510*300*305(mm);
Package size(H×W×D):370*360*575(mm);
N.W: 14.5kg
G.W:16kg
