Product Characteristics

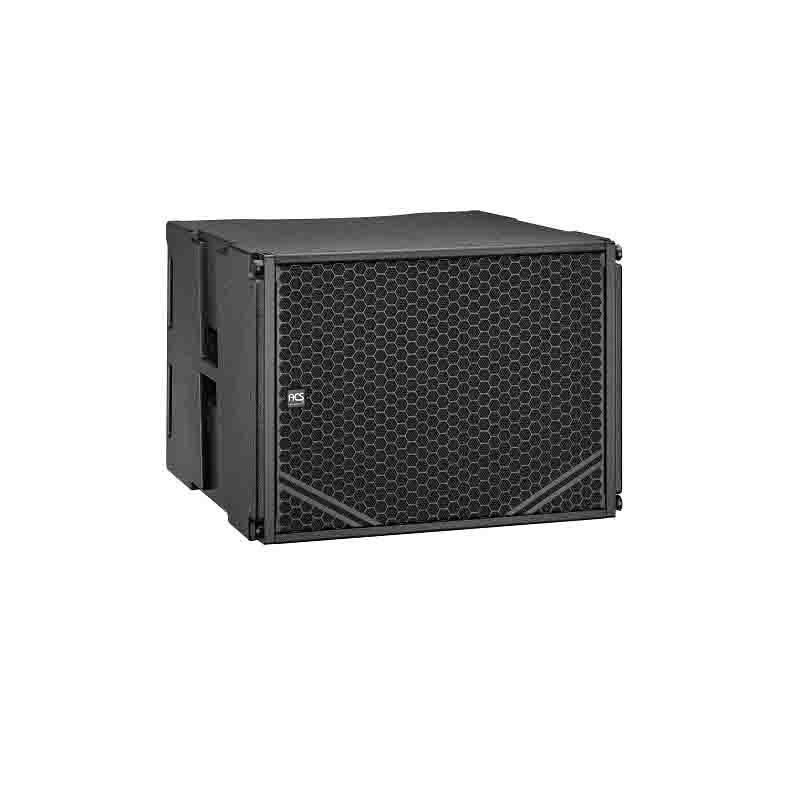

TP-118S is a mid low frequency driver with a voice coil diameter of 100MM and high output, loaded with the latest patented ACPD (Acoustic Correction Passive Driver) technology,
Improve the available output of low frequencies in the bass driver, increase sensitivity, improve sound pressure level and directionality, and increase the horizontal and vertical division points of the speaker's bass driver unit.
The humanized design of the box is equipped with foot pads on all four sides, so you can place it vertically or horizontally. The directional radiation angle of each speaker can be reversed by 180 degrees.
Parameter
System type: Single 18′Subwoofer；
Drivers: LF: 1×18′(100mm voice coil)；
Frequency Response: 40Hz～250Hz；
Power(Rms/Program/Peak): 600W/1200W/2400W；
Sensitivity: 96dB；
Impedance: 8Ω；
Maximum SPL: 124dB；
Speaker Input:NL4MP×2；
Size（H×W×D）： 500×675×695（mm）；
Size（H×W×D）：565*740*760（mm）；
Net Weight:45kg
gross weight：49kg
