Product Characteristics
■The magnetic circuit design of the subwoofer special heat dissipation ensures good heat dissipation under continuous high power, and the relatively constant temperature reduces impedance drift and minimizes the power compression of the unit. The specially reinforced paper cone has good transient and rigidity, which reduces the splitting motion and intermodulation distortion of the paper cone under high power conditions, making the tone more pure and strong.

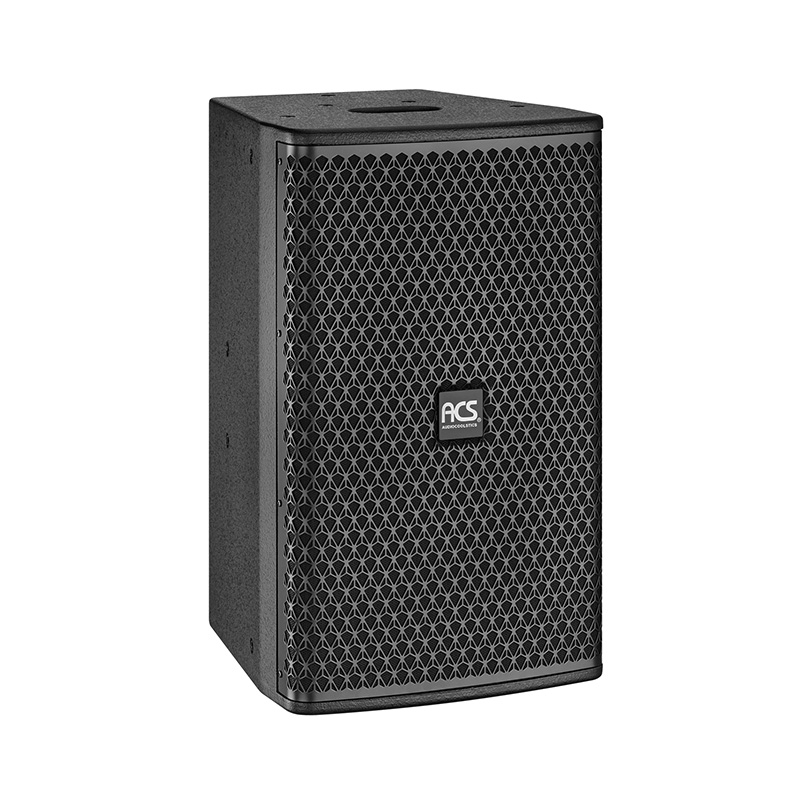

■The box body is made of 15 mm plywood, the surface is wear-resistant black dot pattern spray paint treatment, the appearance is avant-garde, with dustproof mesh protection drive unit. The precisely designed crossover optimizes power response and vocal partial midrange performance: a jack for pole mounting, and the cabinet has 19 M8 threads. The use of sound protection technology can effectively protect the high-frequency driver to avoid power overload and interruption.
Parameter
System type:Single 12′ Full Range Speaker；
Drivers: HF:1×1.75′(44mm voice coil),LF: 1×12′(75mm voice coil)；
Frequency Response: 60Hz～20KHz；
Power(Rms/Program/Peak): 350W/700W/1400W；
Sensitivity: 95dB；
Impedance: 8Ω；
Maximum SPL: 120dB；
Directivity Angle: 95ºH×45ºV；
Speaker Input:NL4MP×2；
Product size（H×W×D）:600*380*365 （mm）；
Package size（H×W×D）:450*430*670（mm）；
N.W:21kg
G.W:23kg
