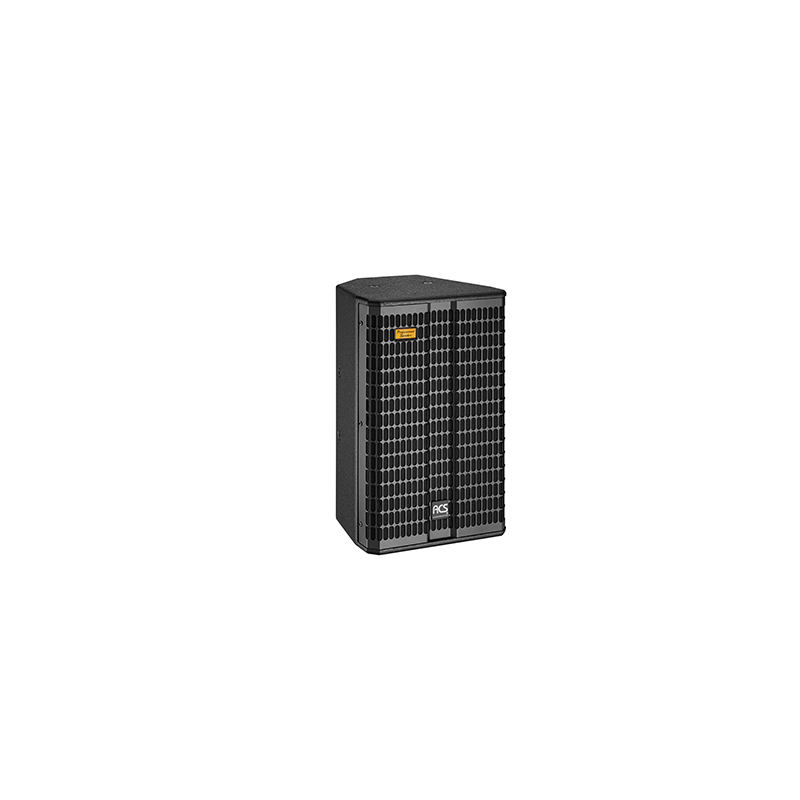

KD-508

Single 8 inch professional speaker

■The KD-508 is a high-power, rugged two-way system with a powerful 8" (203mm) low-frequency driver and a 1-inch high-frequency compression driver mounted on a continuous directivity 55 degree × 100 degree horn. The high-frequency horn can be rotated so that the multi-angle box can be placed both horizontally and vertically. Simplify the system, ideal for full-range loudspeakers that require efficiency and reliability. It is also suitable for fixed installations and quick active installations.

Product Characteristics

■KD-500 series speakers have a real and natural performance, its biggest feature is that it is light and has a high sound pressure level, which just meets many occasions that require small speakers and large spaces. For the durable exterior, high-density board is used as the structural material of the box, and the surface of the box is made of durable black water-based spot paint. The speaker is very strong in terms of anti-aging strength.

■ M8 hanging points are available for hanging and adjusting angles in fixed installation and mobile applications. And there is a 35mm stand base at the bottom of the speaker, which is convenient to use with the low frequency of this series. Perforated iron mesh covered with acoustic sponge in black protects the speaker unit.

Parameter

System type: Single 8′ Full Range Speaker；

Drivers: HF:1×1.35′(34mm voice coil),LF: 1×8′(35mm voice coil)；

Frequency Response: 90Hz～20KHz；

Power(Rms/Program/Peak): 150W/300W/600W；

Sensitivity: 93dB；

Impedance: 8Ω；

Maximum SPL: 115dB；

Directivity Angle: 60ºH×40ºV；

Speaker Input:NL4MP×2；

Product size（H×W×D）： 245*400*230（mm）；

Package size（H×W×D）： 570*325*480（mm）；

N.W: 9kg

G.W：kg
